Custom Metal Elastic Components for Industrial Equipment and Piping Systems
Our elastic components cover hydroformed stainless steel bellows, single-ply and multi-ply bellows, externally pressurized bellows, axial bellows, and integrated bellows elements. Available configurations include 304, 316, 316L, and 321 stainless steel, with selected alloy materials and customized connection structures.
As a manufacturer of stainless steel bellows components, we produce metal elastic components according to equipment dimensions, working conditions, movement requirements, and customer drawings. Individual bellows elements and assemblies with end pipes, flanges, or fittings can be developed for industrial equipment and piping applications.
-
Stainless Steel Exhaust Expansion BellowsStainless Steel Exhaust Expansion Bellows engineered by Yixing Blog Pipeline Equipment Co., Ltd. (a leading China custom exhaust bellows OEM supplier) absorb thermal expansion and reduce...read more
-
Diesel Particulate Filter Flexible ConnectorThe Diesel Particulate Filter (DPF Flexible Connector) from Yixing Blog Pipeline Equipment Co., Ltd is engineered specifically for heavy-duty commercial vehicles and industrial diesel engines. As...read more
-
Marine Engine Exhaust BellowsMarine Engine Exhaust Bellows Manufacturer Yixing Blog Pipeline Equipment Co., Ltd. produces stainless steel expansion joints engineered to absorb high-frequency engine vibration, structural...read more
-
Generator Exhaust Flex ConnectorDesigned to absorb high-amplitude thermal expansion and isolate engine vibration, the Generator Exhaust Flex Connector serves as a heavy-duty stainless steel exhaust expansion joint supplier...read more
-
Interlock Exhaust BellowsInterlock Exhaust Bellows feature an interlocking stainless steel liner that directly smooths exhaust airflow, reducing backpressure by 15%–20% as an OEM stainless steel exhaust flexible pipe...read more
-
Stainless Steel Exhaust Flex PipeThe Stainless Steel Exhaust Flex Pipe is available in SUS304, SUS316L, SUS321, and SUS409 grades, with forming capacities from DN14 to DN150 to absorb thermal expansion and attenuate vibration in...read more
-
Helical Corrugated Metal HoseHelical Corrugated Metal Hose features a continuous spiral corrugated structure, making it suitable for curved installation routes and pipe connections where equipment interfaces are not aligned....read more
-
Stainless Steel Pump Connector HoseStainless steel pump connector hoses feature multi-ply AISI 304, 316L, or 321 corrugated bellows with single or double high-density wire braiding. Designed for pump inlet and discharge lines, they...read more
-
Metal Hose With Fixed Flange EndsMetal Hose with Fixed Flange Ends absorbs thermal expansion, axial displacement, and severe mechanical vibration in high-pressure piping systems. As an experienced China manufacturer, we provide...read more
-
Stainless Steel Flexible Hose With FittingsOperating across -196°C to +600°C (-320°F to +1112°F), our OEM stainless steel flexible hose assembly products absorb high-frequency equipment vibration, compensate for thermal movement, and...read more
-
Vacuum Flexible Metal HoseWe are a specialized vacuum flexible metal hose manufacturer producing high-performance hose assemblies for high-vacuum equipment, industrial pipelines, and HVAC systems. Built with hydro-formed...read more
-
Annular Corrugated Metal HoseAnnular corrugated metal hose uses a flexible metal tube with ring-shaped corrugations to accommodate movement in industrial piping systems. The corrugated profile allows the hose to bend and...read more
Available Elastic Component Types
Different equipment structures require different bellows configurations. Our product range includes:
- Hydroformed Stainless Steel Bellows: Manufactured by applying liquid pressure to a metal tube blank, forming a continuous corrugated structure. Corrugation pitch, height, effective convolutions, and end structure can be adjusted.
- Single Ply Stainless Steel Bellows: A single-layer structure for compact equipment and applications requiring controlled elastic movement.
- Multi Ply Stainless Steel Bellows: Constructed from two or more thin-wall metal layers. The number of plies and individual layer thickness are considered together with movement and operating conditions.
- Externally Pressurized Stainless Steel Bellows: Designed for external-pressure and vacuum-related conditions, with single-ply, multi-ply, or reinforced configurations.

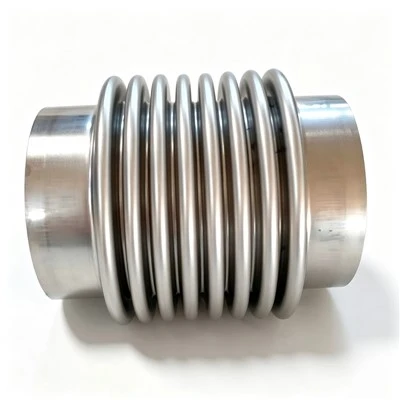

- Axial Stainless Steel Bellows: Configured for movement along the equipment or pipeline centerline. The effective number of convolutions is determined by the required axial travel.
- Stainless Steel Bourdon Tube: Available as a single-ply element, multi-ply element, or assembly with connection components.

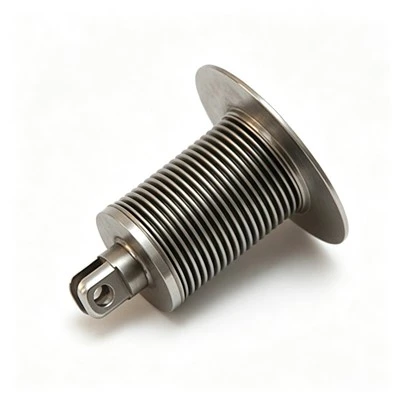

- Stainless Steel Bellows Element: Combines a flexible bellows with end pipes, flanges, fittings, or equipment connection seats.
- Stainless Steel Expansion Joint Bellows: Designed as the flexible element for axial, lateral, or angular movement compensation in piping systems.
Materials and Technical Configurations
Available materials and structural options for our custom metal bellows include:
| Parameter | Available Options |
|---|---|
| Stainless Steel Grades | 304, 316, 316L, 321 |
| Additional Materials | Alloy 600, 625, and 800 series for applicable hydroformed designs |
| Inner Diameter | From Φ6 mm, subject to product design and manufacturing confirmation |
| Single-Ply Wall Thickness | 0.12–25 mm, as specified on applicable product pages |
| Bellows Structure | Single-ply or multi-ply |
| Corrugation Profiles | U-shaped, Ω-shaped, butterfly-shaped, and non-standard profiles |
| End Connections | End pipes, flanges, fittings, and customized connection structures |
The actual configuration depends on working pressure, operating temperature, process medium, displacement direction, movement frequency, and installation space. Material grade, wall thickness, number of plies, and corrugation geometry must be evaluated together rather than selected independently.
Customized Dimensions and Equipment Connections
We can review customer drawings, existing samples, and equipment dimensions to develop suitable stainless steel bellows components.
Customization can cover:
- Material grade and applicable alloy selection
- Inner diameter and wall thickness
- Number of plies and effective convolutions
- Corrugation pitch, height, and profile
- Overall length and installation dimensions
- End pipes, flanges, fittings, and connection seats
- Individual bellows elements or completed assemblies
For axial bellows, the required travel and movement direction are important design inputs. For externally pressurized bellows, internal pressure, external pressure, and vacuum conditions must be reviewed. For integrated bellows elements, connection dimensions, interface positions, and assembly direction should be defined from the equipment drawing.
Manufacturing and Quality Control
Our manufacturing capabilities cover hydraulic forming, automatic longitudinal seam welding, argon arc welding, laser cutting, assembly, and pressure testing.
The technical and production teams can review drawings, samples, and operating conditions before manufacturing. Production inspection covers material processing, forming, welding, assembly, dimensional checking, and finished-product acceptance. Every product is inspected before packaging, and customer-arranged third-party inspection is supported.
These capabilities support the production of metal bellows, flexible components, expansion joint elements, and customized metal assemblies.
Request a Quotation for Custom Metal Bellows
Send us your product drawing, existing sample photographs, or equipment dimensions, together with the material grade, working pressure, operating temperature, required movement, and estimated quantity.
Our team will review the available structural and connection options and provide a quotation based on your technical requirements.
As one of the most professional elastic components manufacturers and suppliers in China, we're featured by quality products and good service. With abundant experience, we warmly welcome you to wholesale bulk elastic components in stock here and get quotation from our factory. Customized orders are welcome.
-
