Metal Hoses Manufacturer for Industrial Piping and Equipment Connections
As a metal hose manufacturer in China, Yixing Blog Pipeline Equipment Co., Ltd. manufactures metal hoses in different corrugated structures and assembly configurations, including annular corrugated hoses, helical corrugated hoses, braided hoses, interlocked stainless steel hoses, and complete flexible hose assemblies. We provide customized inner diameters, overall lengths, and end connections according to equipment drawings, installation dimensions, and operating conditions.
-
Stainless Steel Flexible Hose AssemblyA Stainless Steel Flexible Hose Assembly consists of a stainless steel corrugated hose, an external reinforcement braid, and end fittings, flanges, or other connection components.read more
-

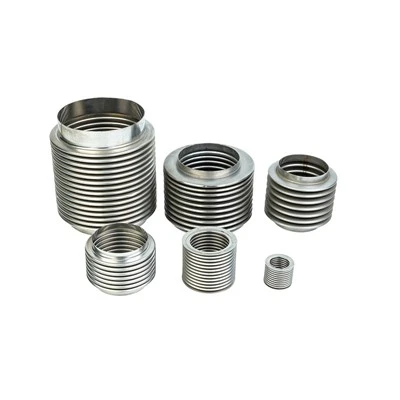

Corrugated Stainless Steel HoseA Corrugated Stainless Steel Hose is made from a thin-wall stainless steel tube with a continuous corrugated structure. It is suitable for equipment and piping connections involving vibration,...read more
-

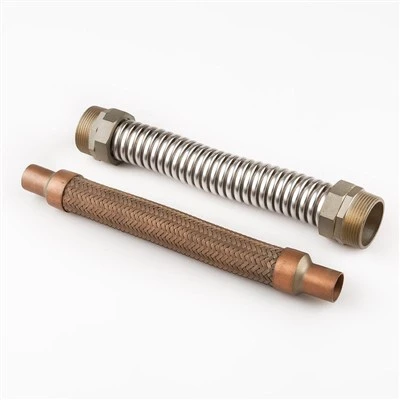

Annular Corrugated Metal HoseAn Annular Corrugated Metal Hose uses a series of separate ring-shaped corrugations arranged evenly along the axis of the hose. Because each corrugation is independent, the hose can bend in...read more
-
Helical Corrugated Metal HoseA Helical Corrugated Metal Hose is manufactured with a continuous spiral corrugation extending from one end of the hose to the other. This structure provides a continuous flexible path and is...read more
-

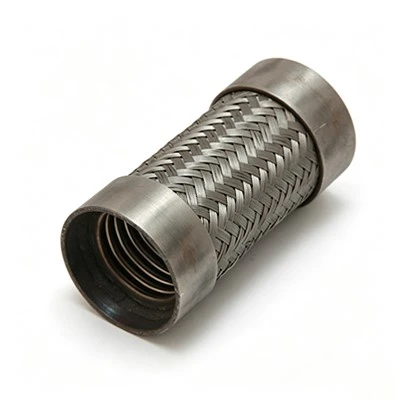

Braided Corrugated Metal HoseA Braided Corrugated Metal Hose consists of an internal metal corrugated hose and an external stainless steel braid. The inner hose provides the medium passage and flexible movement. The braid...read more
-
Interlocked Stainless Steel HoseAn Interlocked Stainless Steel Hose is manufactured from stainless steel strip. The strip is continuously wound into a spiral and mechanically interlocked along its edges to form a flexible metal...read more
-

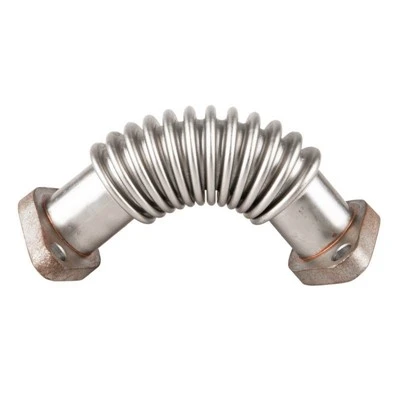

High Pressure Stainless Steel HoseA High Pressure Stainless Steel Hose is a flexible metal hose assembly designed to combine pressure-bearing connection requirements with installation flexibility.read more
Metal Hose Types and Structural Options
Our metal hose product range covers the following configurations:
| Product Type | Structure and Configuration |
|---|---|
| Stainless Steel Flexible Hose Assembly | Stainless steel corrugated hose with external reinforcement braid and end fittings, flanges, or other connection components |
| Corrugated Stainless Steel Hose | Thin-wall stainless steel tube with a continuous corrugated structure |
| Annular Corrugated Metal Hose | Separate ring-shaped corrugations arranged along the hose axis |
| Helical Corrugated Metal Hose | Continuous spiral corrugation extending along the hose body |
| Braided Corrugated Metal Hose | Internal corrugated metal hose with an external stainless steel braid |
| Interlocked Stainless Steel Hose | Stainless steel strip spirally wound and mechanically interlocked along its edges |
| High Pressure Stainless Steel Hose | Flexible metal hose assembly developed for pressure-bearing connection requirements |
Both annular and helical corrugation structures are available. The appropriate configuration depends on the installation path, bending direction, connection arrangement, and operating conditions.
Metal Hose Materials and Connection Options
Our metal hose products include stainless steel hose configurations. The flexible hose assembly can combine a corrugated hose body, reinforcement braid, and end connection components into one completed unit.
Available connection options include:
- Flanged connections
- Threaded fittings
- Compression fittings
- Welded fittings
The reinforcement braid can be configured as a single-layer or multi-layer structure for flexible hose assemblies. For corrugated stainless steel hoses, an external stainless steel braid is an optional configuration.
The final connection arrangement can be specified according to the equipment interface dimensions and installation direction.
Customized Metal Hose Assemblies
We manufacture metal hoses and flexible hose assemblies according to customer drawings, existing samples, and equipment requirements.
Customizable items include:
- Hose inner diameter and overall length
- Corrugation structure
- Single-layer or multi-layer reinforcement braid
- End fitting and flange types
- Connection positions and installation direction
- Structural design based on installation dimensions and operating conditions
For replacement projects, an existing hose sample or confirmed interface dimensions can be used for product development. For new equipment, customers can provide equipment drawings, connection dimensions, and installation space information.
The design review considers the working medium, operating temperature, pressure, hose diameter, length, and connection dimensions. The pressure rating is confirmed according to the actual hose configuration and test results rather than assumed from the product name or appearance.
Metal Hose Manufacturing and Quality Inspection
Yixing Blog Pipeline Equipment Co., Ltd. provides metal forming, welding, cutting, machining, assembly, and pressure testing capabilities for metal flexible connection products.
Our manufacturing equipment includes:
- 2 automatic longitudinal seam welding machines
- 10 argon arc welding machines
- 200-ton and 100-ton four-column hydraulic presses
- Hydraulic bending equipment
- Laser cutting and plasma cutting equipment
- Pipe cutting and machining equipment
- Pressure testing equipment
The production process can cover hose forming, fitting welding, component assembly, and finished-product inspection. Inspection is arranged at relevant manufacturing stages, with finished products checked before packaging.
Our technical team can review customer drawings, samples, equipment parameters, and installation requirements before confirming the product configuration.
Request a Metal Hose Quotation
For a metal hose quotation, please send us your required hose type, inner diameter, overall length, working medium, operating temperature and pressure, and end connection specifications.
If you are replacing an existing hose or developing a new equipment connection, you can also send us a product photo, sample details, or technical drawing. We will review the requirements and discuss the suitable metal hose structure and assembly configuration for your project.
Send Your Metal Hose InquiryAs one of the most professional metal hoses manufacturers and suppliers in China, we're featured by quality products and good service. With abundant experience, we warmly welcome you to wholesale bulk metal hoses in stock here and get quotation from our factory. Customized orders are welcome.
-
