Metal Expansion Joints for Industrial Piping Systems
Yixing Blog Pipeline Equipment Co., Ltd. supplies eight types of metal expansion joints for industrial piping systems, including axial, lateral, angular, universal, hinged, gimbal, pressure-balanced, and externally pressurized designs. Each configuration addresses different pipeline movement requirements, from linear thermal expansion to controlled angular displacement and pressure-thrust management.
Available designs can be developed with stainless steel or alloy bellows, different connection arrangements, and structural dimensions based on project drawings and operating conditions.
-
Metal Lateral Expansion JointA Metal Lateral Expansion Joint is designed to absorb movement perpendicular to the pipeline centerline. It is suitable for equipment interface misalignment, sideways movement, and flexible...read more
-

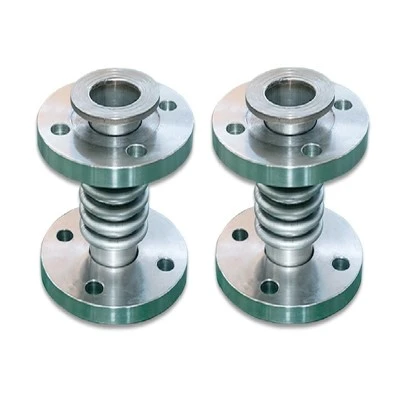

Metal Axial Expansion JointA Metal Axial Expansion Joint is mainly used to absorb thermal expansion and contraction along the centerline of a pipeline. It is commonly applied in steam, hot-water, and high-temperature...read more
-

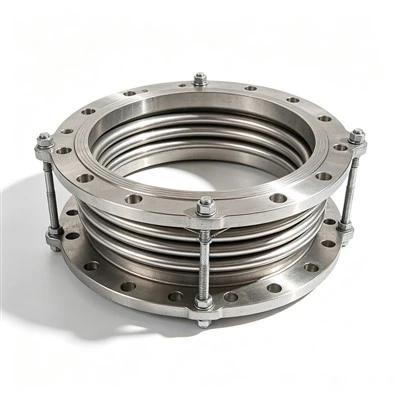

Metal Angular Expansion JointA Metal Angular Expansion Joint uses a metal bellows to create angular movement and absorb changes in pipeline direction. It is suitable for piping layouts where movement must be controlled rather...read more
-

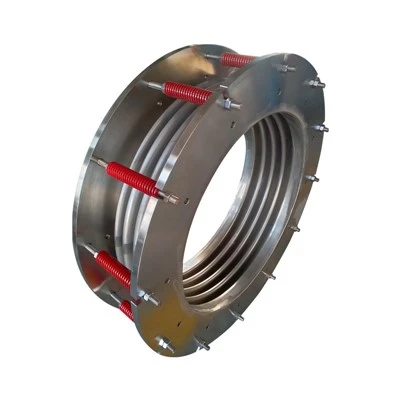

Universal Metal Expansion JointA Universal Metal Expansion Joint normally consists of two metal bellows connected by an intermediate pipe. This combined structure can absorb axial, lateral, and a certain range of angular movement.read more
-

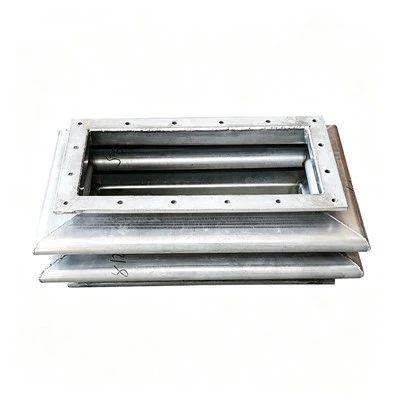

Hinged Metal Expansion JointA Hinged Metal Expansion Joint combines a metal bellows with a hinge assembly. It is mainly designed to allow angular movement within one specified plane. The hinge structure controls the movement...read more
-

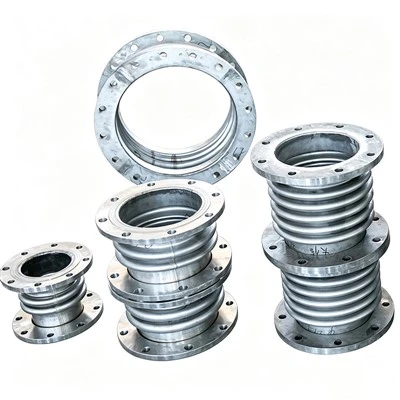

Gimbal Metal Expansion JointA Gimbal Metal Expansion Joint combines a metal bellows with a gimbal assembly. The gimbal guides the bellows to produce controlled angular movement in multiple planes while restricting movement...read more
-

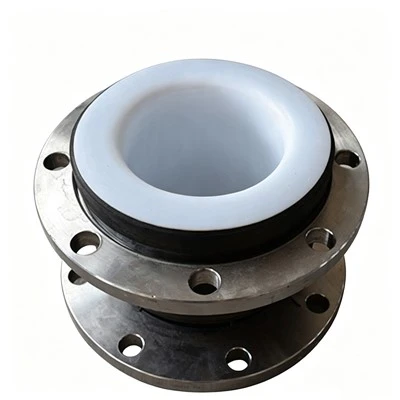

Pressure Balanced Metal Expansion JointA Pressure Balanced Metal Expansion Joint uses a combination of working bellows and balancing bellows. Its purpose is to reduce or balance the axial thrust created by internal pressure in a piping...read more
-

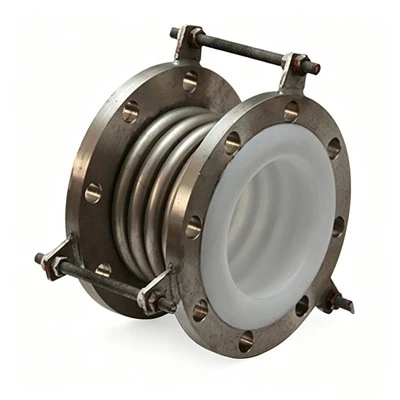

Externally Pressurized Metal Expansion JointAn Externally Pressurized Metal Expansion Joint consists of an externally pressurized bellows and an outer casing. The bellows operates under external pressure and is mainly used for larger axial...read more
1. Metal Expansion Joint Types and Structural Options
Different piping layouts require different movement compensation structures. Our metal expansion joint range includes the following configurations:
| Expansion Joint Type | Structural Design | Main Movement or Function |
|---|---|---|
| Metal Axial Expansion Joint | Metal bellows with optional internal sleeve, guides and protective components | Axial expansion and contraction along the pipeline centerline |
| Metal Lateral Expansion Joint | Single-bellows or double-bellows arrangement | Lateral movement perpendicular to the pipeline centerline |
| Metal Angular Expansion Joint | Metal bellows with hinges, guides or related structural components | Controlled angular movement |
| Universal Metal Expansion Joint | Two metal bellows connected by an intermediate pipe | Axial, lateral and a certain range of angular movement |
| Hinged Metal Expansion Joint | Metal bellows with a hinge assembly | Angular movement within one specified plane |
| Gimbal Metal Expansion Joint | Metal bellows with a gimbal assembly | Controlled angular movement in multiple planes |
| Pressure Balanced Metal Expansion Joint | Working bellows combined with balancing bellows | Displacement compensation and management of internal-pressure thrust |
| Externally Pressurized Metal Expansion Joint | Externally pressurized bellows with an outer casing | Axial compensation, particularly for larger axial displacement requirements |
2. Select an Expansion Joint According to Pipeline Movement
Axial Expansion Joints
Metal axial expansion joints absorb thermal expansion and contraction along the pipeline centerline. They are used in steam, hot-water and other industrial piping systems where temperature changes produce linear movement.
The bellows can be combined with end pipes, flanges, internal sleeves, guiding components and external protective structures. Flanged connections and welded end pipes are available.
The number of convolutions, effective length and overall dimensions are designed according to pipe diameter, required axial movement, working temperature, pressure and expected operating cycles.
Lateral Expansion Joints
Metal lateral expansion joints accommodate movement perpendicular to the pipeline centerline. They are suitable for parallel pipe offsets, equipment interface misalignment and piping arrangements requiring sideways compensation.
Available structures include single-bellows and double-bellows arrangements. The overall length and bellows configuration are designed according to the required lateral movement and available installation space.
Connection options include flanges, end pipes and non-standard interfaces.
Angular Expansion Joints
Metal angular expansion joints use bellows and associated structural components to accommodate controlled angular movement.
The hinge or guide arrangement determines the movement direction and plane. Two or more angular expansion joint units can be arranged together when the pipeline system requires coordinated angular compensation.
Stainless steel and alloy materials are available, with flanged or end-pipe connections.
Universal Expansion Joints
A universal metal expansion joint normally consists of two metal bellows connected by an intermediate pipe.
This double-bellows structure accommodates axial, lateral and a certain range of angular movement. It is suitable for equipment connections and spatial piping layouts where a single axial joint cannot accommodate the required movement directions.
Tie rods or movement-limiting components can also be incorporated according to the pipeline design.
Hinged and Gimbal Expansion Joints
These two designs provide controlled angular movement but differ in their movement arrangements.
- Hinged Metal Expansion Joints: The hinge assembly controls angular movement within one specified plane. Hinged units are normally installed in pairs or groups to accommodate pipeline thermal movement.
- Gimbal Metal Expansion Joints: The gimbal assembly allows controlled angular movement in two intersecting planes, making the design suitable for three-dimensional piping layouts.
Pressure-Balanced Expansion Joints
Pressure-balanced metal expansion joints combine working bellows and balancing bellows. The working bellows accommodates pipeline movement, while the balancing bellows manages axial thrust generated by internal pressure.
The structure can be configured for axial movement, lateral movement or a combination of movement directions according to the pipeline arrangement.
Externally Pressurized Expansion Joints
An externally pressurized metal expansion joint consists of an externally pressurized bellows and an outer casing. The bellows operates under external pressure and provides axial compensation.
This configuration is used for larger axial displacement requirements and piping systems with specific bellows stability considerations. Internal-flow guidance, drainage and protective components can be incorporated according to the project arrangement.
3. Materials, Dimensions and Connection Options
Expansion joint configurations are developed according to their structural requirements and actual operating conditions.
| Design Item | Available Options or Design Basis |
|---|---|
| Bellows material | Stainless steel or alloy materials |
| Connection type | Flanges, welded end pipes or non-standard interfaces, depending on the design |
| Bellows arrangement | Single-bellows or double-bellows structures, depending on the product |
| Overall length | Designed according to required movement and available installation space |
| Internal components | Internal sleeves, guides, tie rods, movement limiters or protective components, depending on the configuration |
| Structural design | Developed according to pipeline layout, installation dimensions and operating conditions |
For axial expansion joints, the number of convolutions and effective length are determined by the required axial compensation and operating conditions.
For lateral expansion joints, the bellows arrangement and structural length are designed around the required sideways movement.
For universal, hinged and gimbal designs, the intermediate structure, hinge position or gimbal orientation must correspond to the intended movement direction.
4. Custom Metal Expansion Joint Manufacturing
We provide product selection, structural design and customized manufacturing for metal expansion joints and pipeline compensators.
- Materials: Stainless steel, carbon steel and alloy materials, subject to product design.
- Diameters: Developed according to the required pipeline dimensions.
- Lengths: Adjusted according to compensation requirements and available installation space.
- Connection types: Flanges, end pipes and non-standard interfaces.
- Structural arrangements: Single-bellows, double-bellows, hinged, gimbal, pressure-balanced and other non-standard configurations.
- Project-specific components: Internal sleeves, guides, tie rods, protective structures and other applicable components.
Production can be based on customer drawings, existing samples, installation dimensions, equipment interface information and operating medium requirements.
5. Manufacturing Equipment and Production Support
Yixing Blog Pipeline Equipment Co., Ltd. has specialized in metal bellows, expansion joints and pipeline compensators since 2012.
Our manufacturing facilities include 37 production and auxiliary equipment units or sets, supporting metal forming, sheet metal processing, welding, cutting, machining, assembly and pressure testing.
Key equipment includes:
- 200-ton and 100-ton four-column hydraulic presses, plus horizontal hydraulic presses.
- A 200-ton hydraulic press brake with a bending length of up to 4,000 mm.
- Bellows forming equipment covering DN14–DN150.
- Two automatic longitudinal seam welding machines.
- Ten argon arc welding machines.
- Four 5-ton overhead cranes.
- Pressure testing equipment with a capacity of up to 6.3 MPa.
These are factory equipment capabilities. Actual product dimensions, design pressure and test requirements are determined separately for each confirmed technical specification.
Our production processes include hydroforming, automatic longitudinal seam welding, argon arc welding, laser cutting, sheet metal bending and component assembly.
Technical personnel can participate in product selection, structural design and project-specific manufacturing based on the customer's drawings and operating conditions.
6. Request a Metal Expansion Joint Quotation
For a suitable metal expansion joint quotation, please send your existing product drawing, pipeline specifications or project requirements.
Useful information includes:
- Pipe diameter and connection dimensions.
- Design pressure and temperature.
- Working medium.
- Required axial, lateral or angular movement.
- Installation length and available space.
- Material requirements.
- Expected operating cycles and pipeline support conditions.
Our team can review the available information and discuss the corresponding expansion joint structure, material and manufacturing arrangement for your project.
Contact Yixing Blog Pipeline Equipment Co., Ltd. with your drawings or technical specifications to discuss your metal expansion joint requirements.
