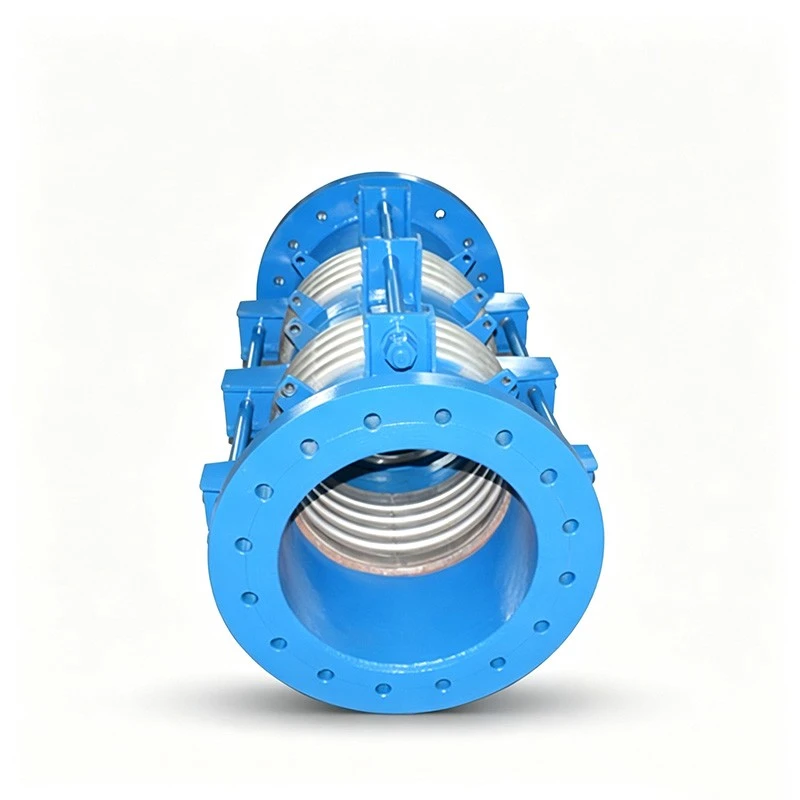

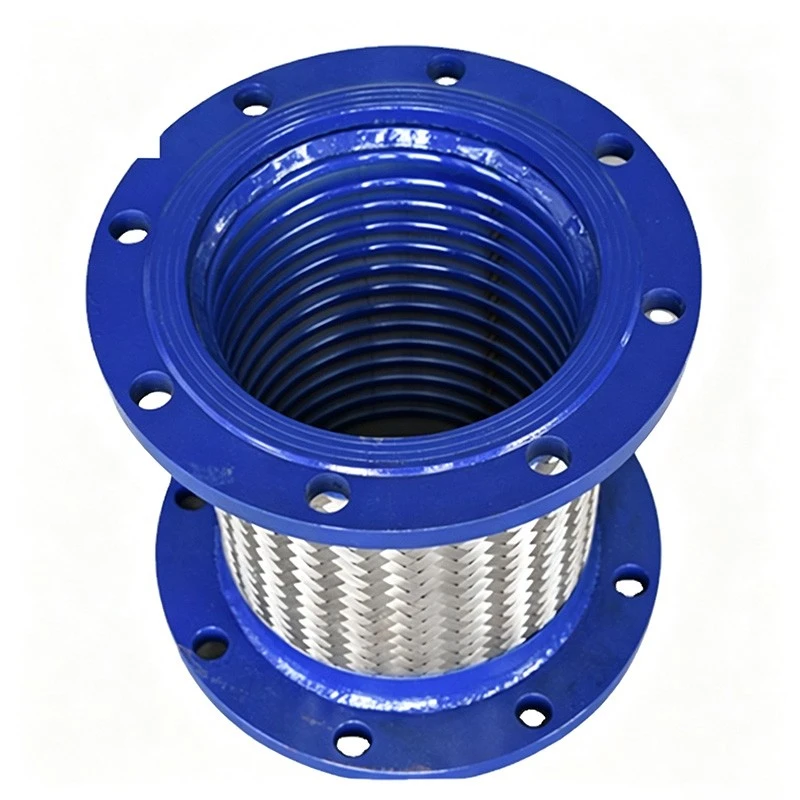

Pressure Balanced Metal Expansion Joint

A Pressure Balanced Metal Expansion Joint uses a combination of working bellows and balancing bellows. Its purpose is to reduce or balance the axial thrust created by internal pressure in a piping system while also providing displacement compensation.

The structure can be configured for axial movement, lateral movement, or a combination of displacement directions according to the pipeline layout. Stainless steel and alloy materials are available, while connection options include flanges and end pipes.

This product is suitable for piping systems where fixed-support conditions are limited, equipment interfaces cannot accept a large axial load, or conventional main anchors are difficult to arrange.

The working bellows absorbs the actual movement produced by the pipeline or equipment. The balancing bellows uses its effective area and structural position to manage the internal-pressure thrust.

For pump, compressor, or turbine connections, the structure can reduce the axial effect of pipeline pressure on the equipment nozzle. For heat-exchange equipment or pipe bends, axial or lateral compensation arrangements can be developed according to the piping direction.

Product design requires simultaneous confirmation of pressure, displacement, and allowable equipment interface loads. Pipe diameter, temperature, medium, installation length, fixed conditions, and expected operating cycles should also be provided.

The working and balancing bellows are related in size and position. A Pressure Balanced Metal Expansion Joint should not be purchased only according to pipe diameter or compensation movement without reviewing the complete pressure and load conditions.

Yixing Blog Pipeline Equipment Co., Ltd. develops metal expansion joints, pipeline compensators, and non-standard flexible connection structures. Its technical team can confirm the arrangement of working bellows, balancing bellows, connecting pipes, and end components during the early project stage.

Available manufacturing processes include hydroforming, automatic longitudinal seam welding, argon arc welding, laser cutting, sheet metal bending, and pressure testing.

Production checks focus on bellows effective areas, component length, connection positions, and weld quality. The factory's pressure testing capability can reach 6.3 MPa. However, the actual test pressure, testing method, and acceptance conditions for each product must follow the confirmed design and technical agreement.

Inspection is arranged throughout raw material preparation, forming, welding, assembly, and finished-product acceptance.

This product is suitable for pumps, compressors, turbines, heat-exchange equipment, pipe bends, and large industrial piping systems.

Production can be based on pipeline drawings, equipment interface parameters, or existing samples. The minimum order quantity is one piece.

A standard single specification normally requires about one month. Products using special materials, larger quantities, new tooling, or complex pressure-balancing structures generally require two to three months.

Photos or videos can be provided during manufacturing. Every product is inspected before packaging, and customer-arranged third-party inspection is supported.

Packaging options include small packages and wooden cases. EXW and FOB delivery terms are available. Remote or on-site technical assistance can be provided for installation, commissioning, and operating guidance.
