Metal Lateral Expansion Joint

A Metal Lateral Expansion Joint is designed to absorb movement perpendicular to the pipeline centerline. It is suitable for equipment interface misalignment, sideways movement, and flexible compensation in complex piping layouts.

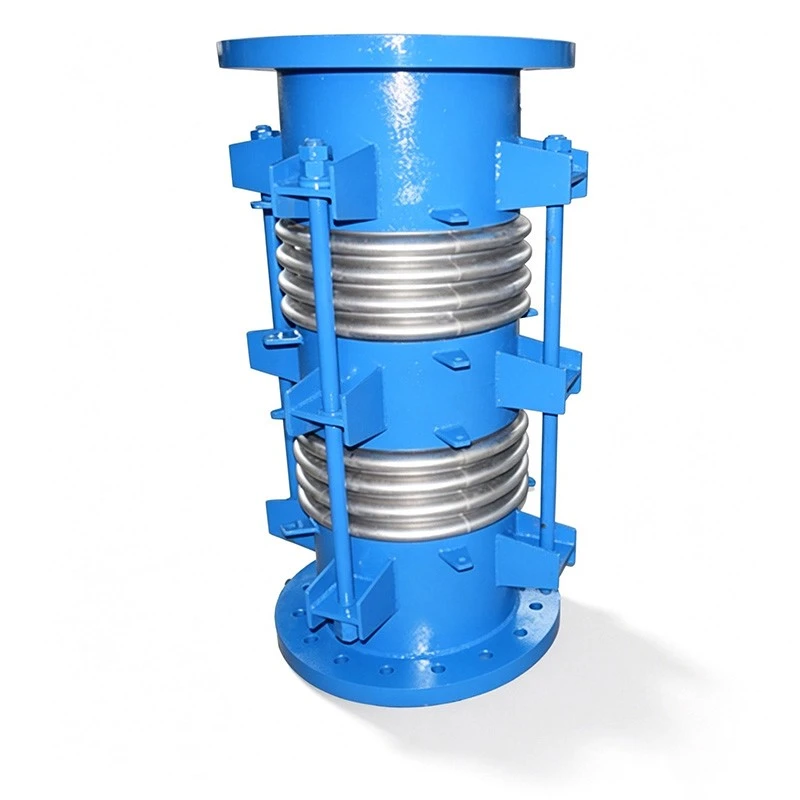

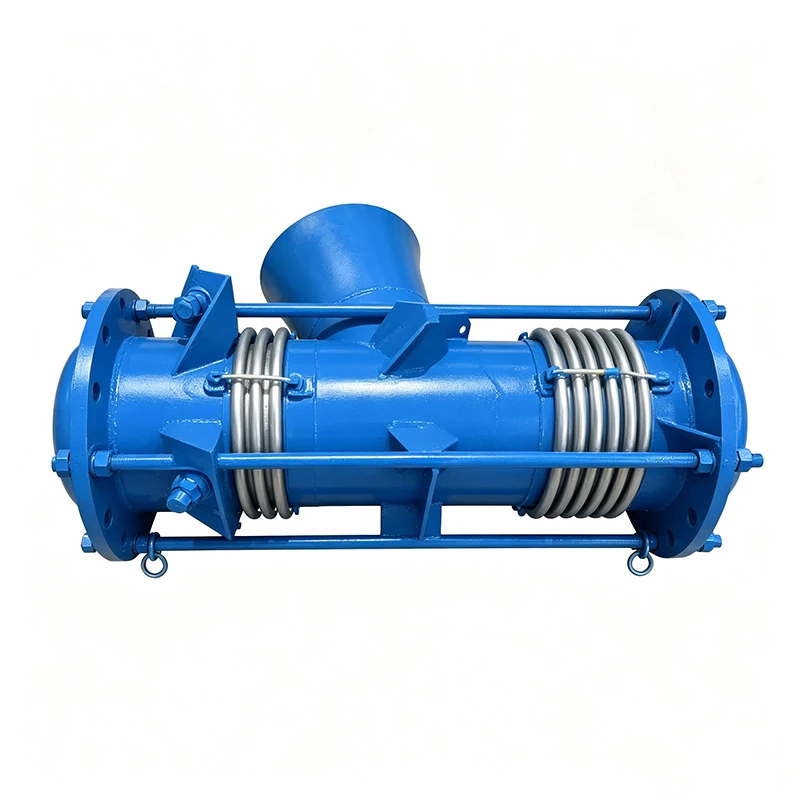

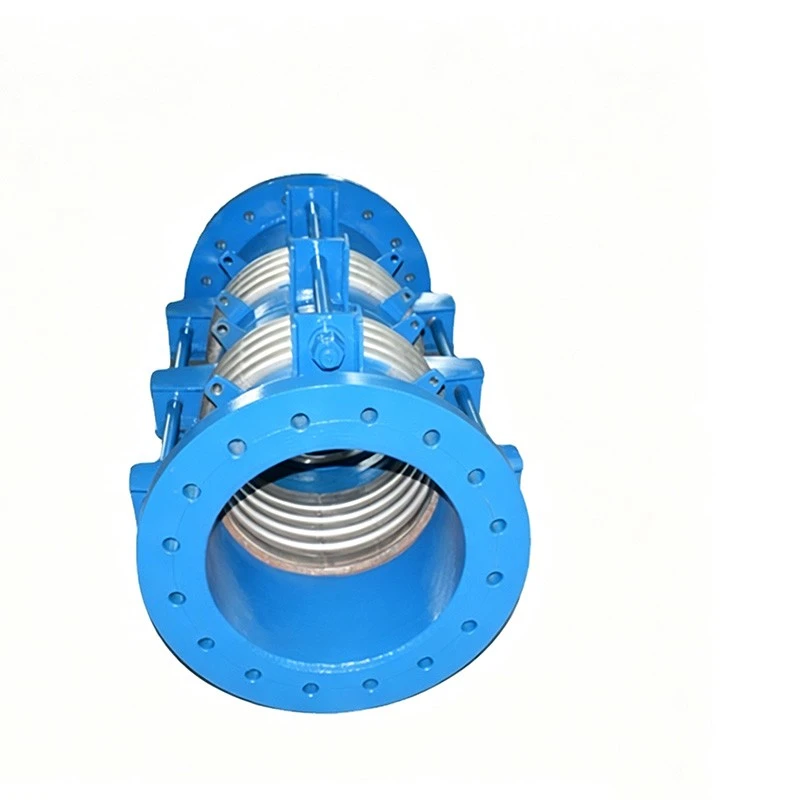

The product normally consists of one or more metal bellows, a connecting pipe, and related structural parts. Depending on the required lateral movement, it can be designed with a single-bellows or double-bellows arrangement.

Stainless steel and alloy materials are available. End connections may include flanges, end pipes, or non-standard interfaces. The total product length is designed according to the required lateral movement and the available installation space.

Structural length, bellows configuration, and support arrangement all affect the lateral compensation capability and should be reviewed as one complete system.

Unlike an axial expansion joint that mainly compresses and extends along the pipe centerline, this product absorbs sideways movement through the combined deformation of the bellows and intermediate structure.

For equipment inlet and outlet connections with a parallel offset, the distance between the interfaces and the required lateral movement should be provided. For heat-exchange systems or large mechanical equipment, the piping direction, equipment nozzle load, and site support conditions should also be considered.

Increasing the structural length can improve the product's ability to accommodate lateral movement. However, the final length must still match the available installation space and the overall piping layout.

Before purchasing a Metal Lateral Expansion Joint, the purchaser should provide the pipe diameter, pressure, temperature, medium, lateral compensation requirement, connection dimensions, installation direction, and available length. Selecting the product only according to the pipe diameter or flange size is not sufficient.

The factory has research, process, and production teams for metal expansion joints and non-standard compensators. A single-bellows or double-bellows structure can be developed according to the pipeline layout.

Available manufacturing processes include hydroforming, automatic longitudinal seam welding, argon arc welding, laser cutting, and sheet metal bending. Connecting pipes, flanges, end pipes, and structural supports can be produced for different overall lengths and interface arrangements.

The factory places emphasis on production parameters and weld quality. Acceptance checks are arranged from material cutting through forming, welding, component assembly, and final inspection.

Batch production information is retained to provide a clearer basis for engineering support and later repeat orders.

This product is suitable for industrial piping, equipment inlet and outlet connections, heat-exchange systems, energy installations, and large mechanical equipment connections.

Production can be based on technical drawings, site dimensions, or equipment interface information. The minimum order quantity is one piece. A sample or prototype can also be arranged for confirmation.

Customized products normally require two to three months. Orders involving special materials, larger quantities, or dedicated tooling should be scheduled according to the actual structure.

Photos or videos can be provided during production. Every product is inspected before packaging, and customer-appointed third-party inspection is supported.

A six-month industry warranty is provided. If minor transportation damage is confirmed after delivery, repair or a small replacement shipment may be arranged. Installation and operating assistance can be provided remotely or on site.
