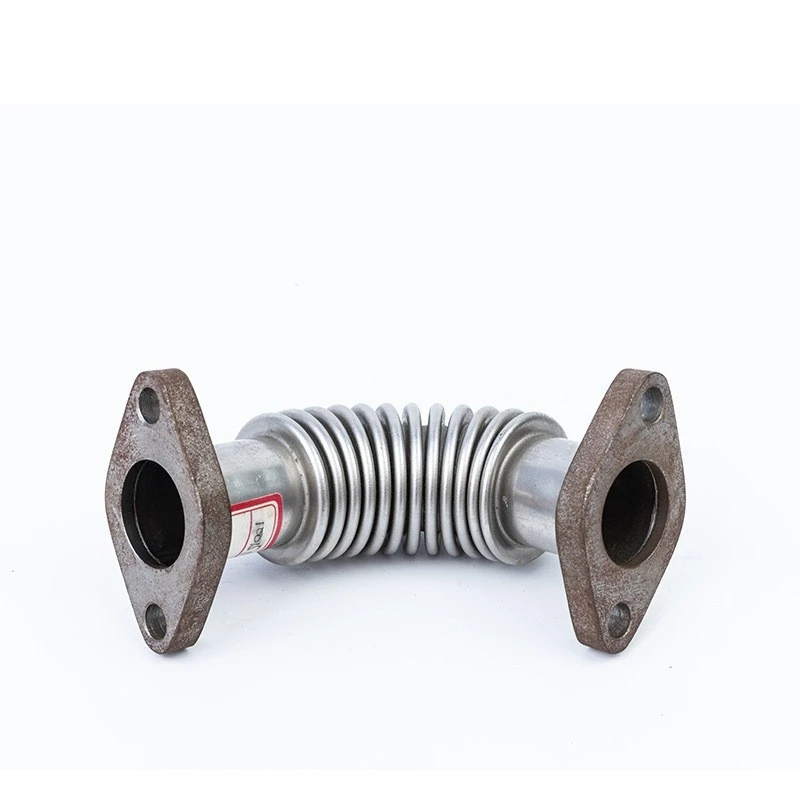

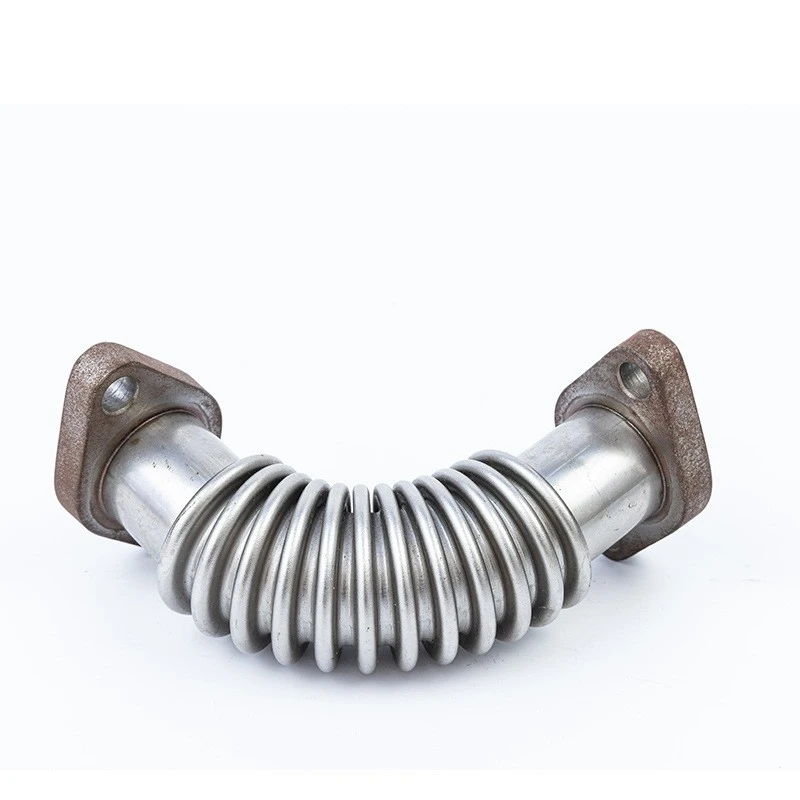

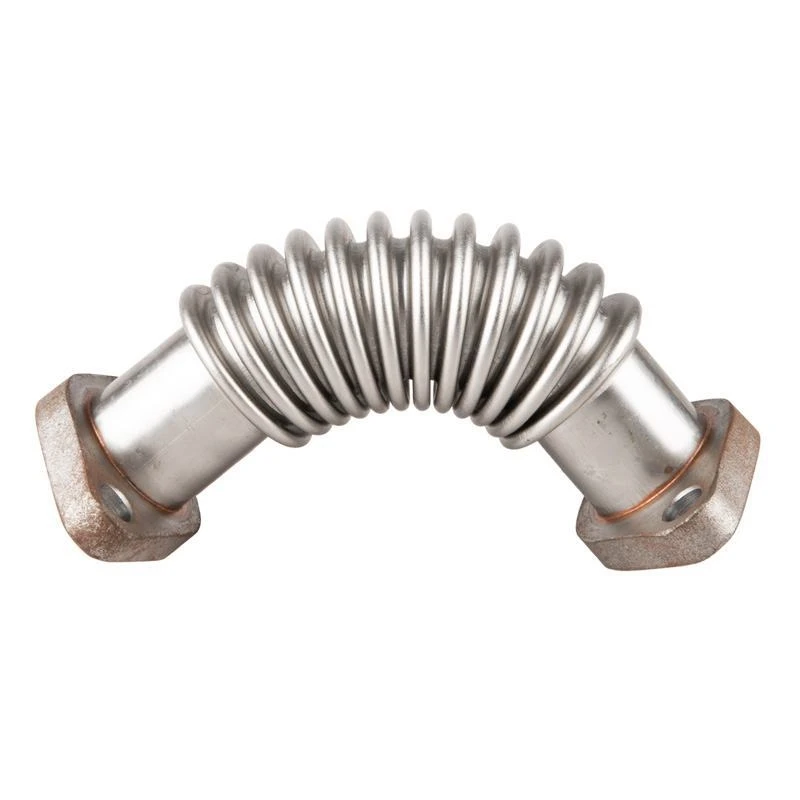

High Pressure Stainless Steel Hose

A High Pressure Stainless Steel Hose is a flexible metal hose assembly designed to combine pressure-bearing connection requirements with installation flexibility.

The product normally consists of a stainless steel corrugated inner hose, a single-layer or multi-layer reinforcement braid, and end fittings. The corrugated inner hose creates a continuous medium passage and accommodates equipment vibration, displacement, and installation deviation.

The external braid limits axial extension under pressure and improves the stability of the complete assembly. Available connection options include flanges, threaded fittings, and welded fittings.

The diameter and length can be customized according to the equipment layout, connection direction, and available site space.

The actual pressure rating is not determined by the product name alone. It depends on several connected factors, including the inner-hose diameter, corrugation structure, number of braid layers, material, working temperature, fitting type, and actual test results.

For hydraulic equipment, the purchaser should provide the working pressure, process medium, temperature, pressure pulsation conditions, and required installation length.

For compressors or industrial gas equipment, the vibration level, interface direction, and available bending space should also be confirmed.

A correctly configured braid can improve the stability of the pressure-bearing structure. However, the High Pressure Stainless Steel Hose should still not be excessively twisted, forcibly stretched, or installed below the applicable bending radius.

The final working pressure and burst pressure must be based on the confirmed product calculation, approved drawing, and actual test results.

Yixing Blog Pipeline Equipment Co., Ltd. manufactures metal bellows, metal hoses, expansion joints, and flexible connection assemblies. Products can be customized according to equipment interfaces, piping parameters, or existing samples.

The technical team can confirm the diameter, length, number of braid layers, fitting specifications, and installation direction before production.

Manufacturing capabilities include hydroforming, automatic longitudinal seam welding, argon arc welding, laser cutting, and pressure testing. The factory's pressure testing capability can reach 6.3 MPa. However, the actual test pressure for each hose must follow its product structure and confirmed technical agreement.

Inspection covers raw material cutting, corrugation forming, braid assembly, fitting welding, and finished-product acceptance. Every hose is inspected before packaging, and third-party inspection is supported.

This product is suitable for hydraulic equipment, industrial gas equipment, pump and valve systems, compressors, testing equipment, and other piping systems requiring flexible pressure connections.

OEM and ODM services are available. Products can be manufactured according to technical drawings or prototypes. The minimum order quantity is one piece, and a sample can be arranged before batch production.

One standard specification normally requires about one month. Special materials, larger quantities, new tooling, or non-standard fittings generally require two to three months.

Photos or videos can be provided during production. Small packages and wooden cases are available. EXW and FOB delivery terms are supported.

If transportation damage occurs, repair or a small replacement shipment may be arranged according to the actual situation. A six-month industry warranty is provided, with technical assistance available by phone, online communication, or on-site support.
