Stainless Steel Bellows Element

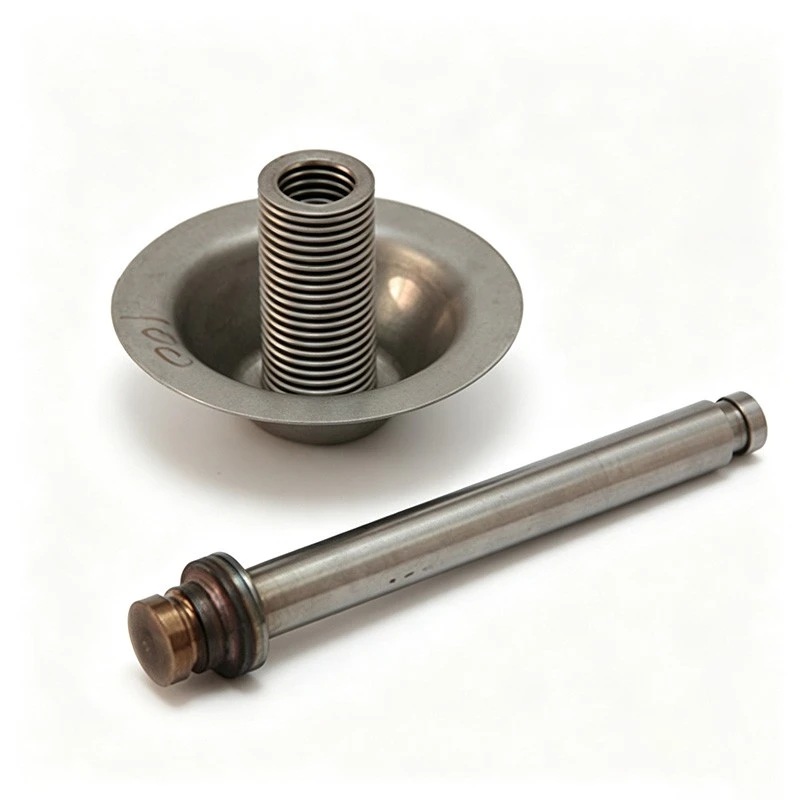

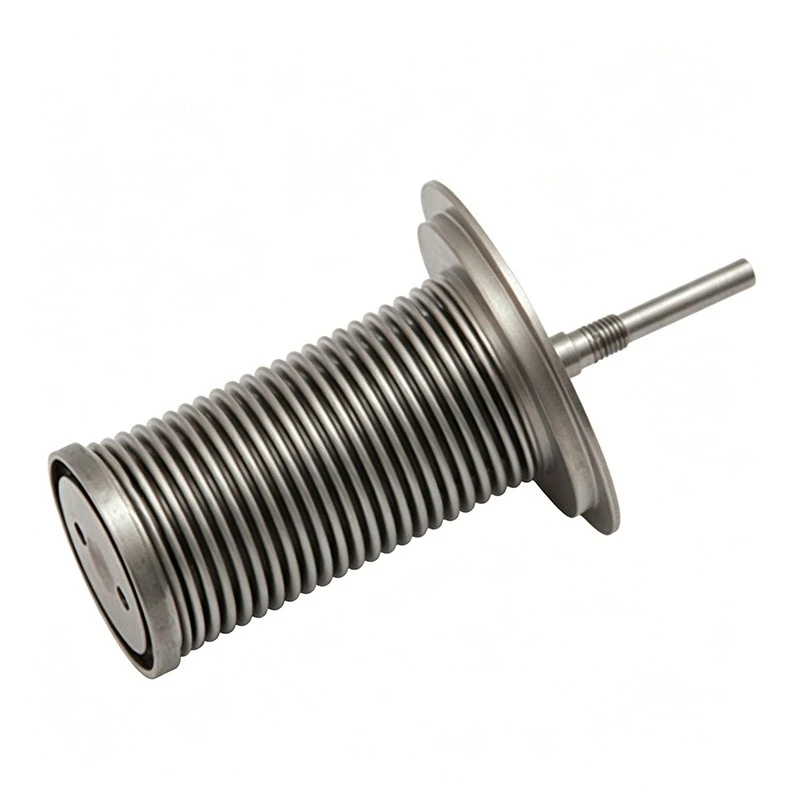

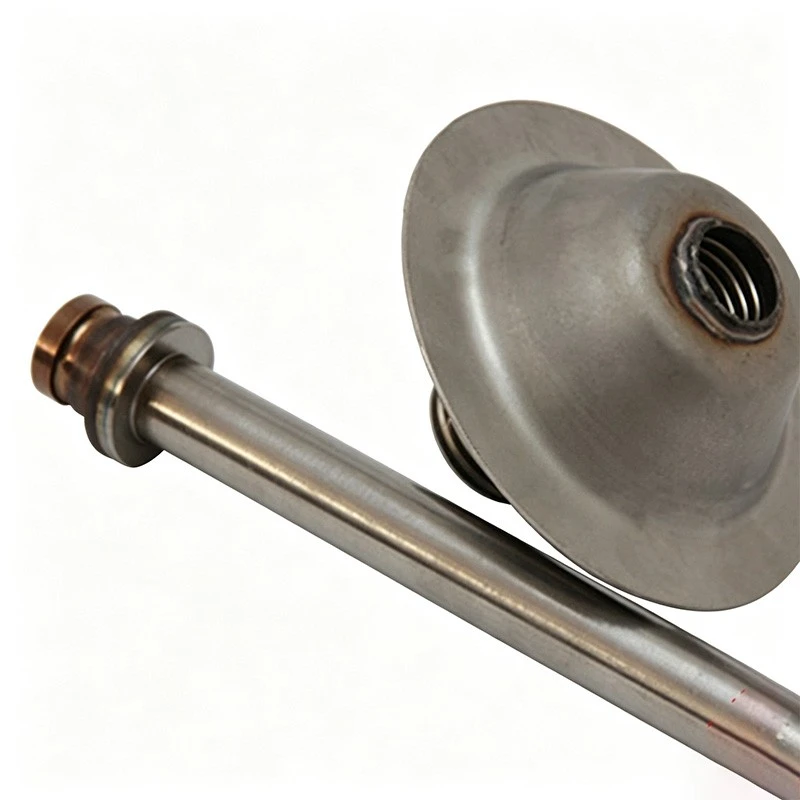

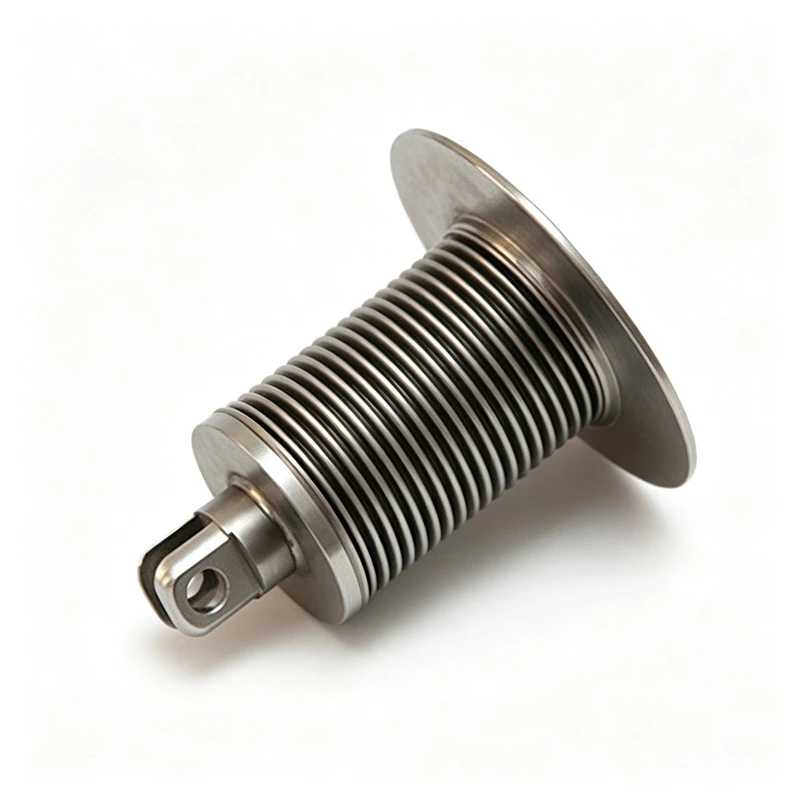

A Stainless Steel Bellows Element uses a metal bellows as its main flexible part and combines it with end pipes, flanges, fittings, or other structural components. It is supplied as a functional component that can be integrated directly into equipment.

Compared with purchasing an individual bellows, this assembly-focused design allows the interface position, overall length, installation direction, and connection dimensions to be developed around the equipment structure. This can reduce the purchaser's need to arrange additional welding, connection matching, and component assembly after delivery.

The element can be designed with a single-ply or multi-ply structure. Its inner diameter starts from Φ6 mm, and both stainless steel and alloy materials are available according to the application requirements.

The product may be used for flexible connection, media isolation, displacement compensation, and pressure transmission. The detailed structure depends on how the element will be installed and operated.

For valve sealing applications, the end structure can be configured according to the valve stem, valve cover, or connection seat. For precision machinery and automatic control actuators, the bellows length and number of plies can be adjusted according to the movement direction, effective travel, and available installation space.

For equipment isolation applications, the material and welding structure should be determined according to the process medium, operating temperature, and working pressure. The purchaser should provide interface drawings, assembly reference points, medium direction, and expected movement conditions.

The Stainless Steel Bellows Element should be treated as a complete mechanical system during product selection. The bellows and its connection parts should be confirmed together rather than selected separately.

Yixing Blog Pipeline Equipment Co., Ltd. can participate in product selection and structural review during the technical consultation stage. Its team covers product development, process design, manufacturing management, and customer service.

The factory has automatic longitudinal seam welding, argon arc welding, laser cutting, hydroforming, and pressure testing capabilities. These manufacturing processes support the production of bellows and related connection components within one project.

Installation dimensions are reviewed before production. Forming, welding, and assembly processes are controlled during manufacturing. Welds, connection dimensions, and the overall assembly condition are checked before delivery.

Inspection is arranged from raw material preparation through forming and component assembly. Every product is inspected before packaging. Third-party inspection arranged by the purchaser is also supported.

The product is suitable for valve sealing, equipment isolation, pressure transmission, displacement compensation, precision machinery, and automatic control actuators.

Production can be based on technical drawings or an existing prototype. The minimum order quantity is one piece, making the product suitable for new product trials, maintenance replacements, and small non-standard orders.

A sample can be developed before batch production. According to the supplied information, the development time for a custom sample is generally about six months. Projects involving a new structure or dedicated tooling should be planned in advance.

If transportation damage occurs after delivery, repair or a small replacement shipment may be arranged according to the actual situation. The product is supplied with a six-month industry warranty.
