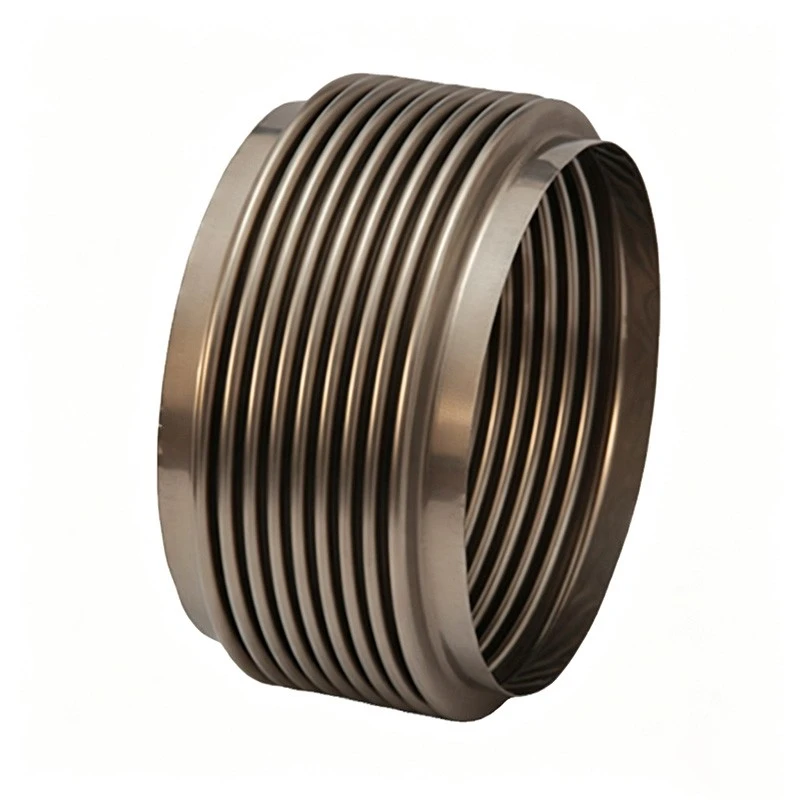

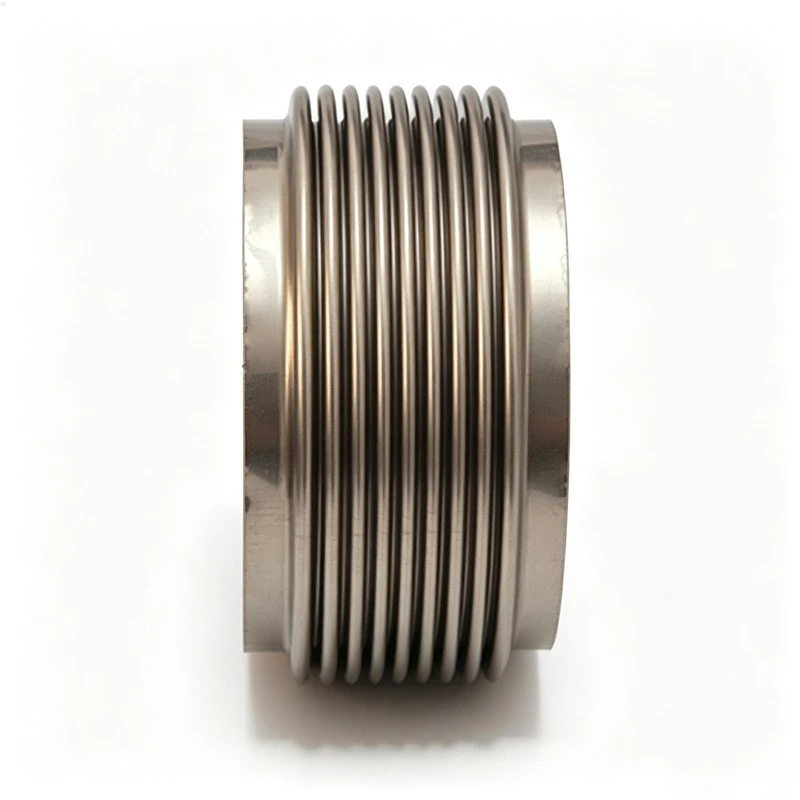

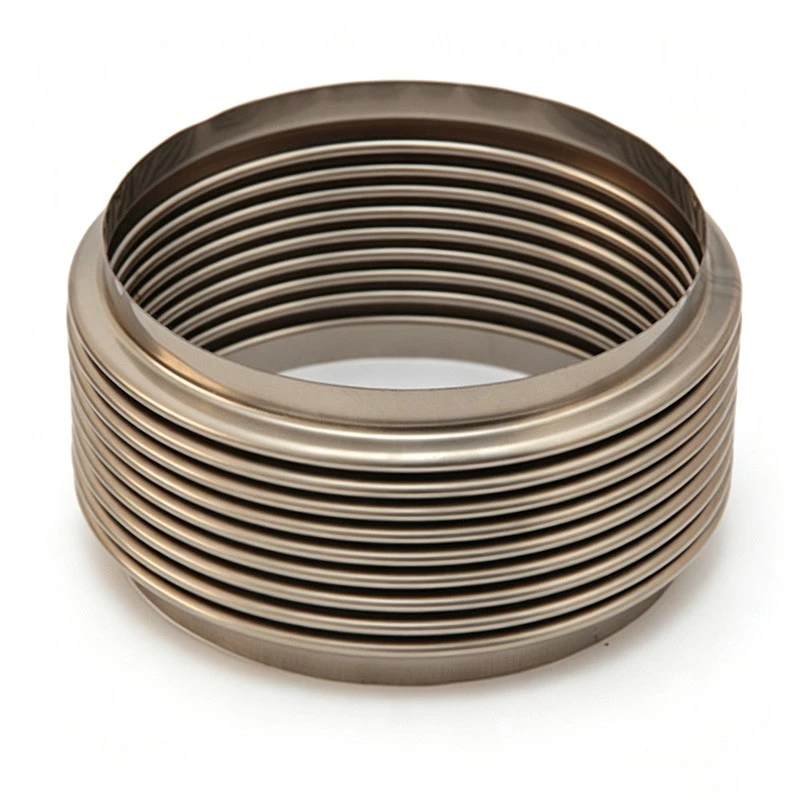

Single Ply Stainless Steel Bellows



A Single Ply Stainless Steel Bellows is formed from one layer of metal tube. Its simple construction is suitable for equipment with clear requirements for flexibility, response speed, product weight, and installation space. Compared with a multi-ply design, the single-layer structure has fewer material layers and normally responds more directly to changes in pressure or axial movement.

The product can be manufactured with different corrugation pitches, heights, effective convolutions, and overall lengths. These details are determined according to the internal equipment space, axial travel, working pressure, and process medium. Available corrugation profiles include U-shaped, Ω-shaped, butterfly-shaped, and custom designs.

This structure is particularly useful in small, precise, or space-limited components where controlled elastic movement is required within a short installation length.



Available materials include 304, 316, 316L, and 321 stainless steel. The inner diameter starts from Φ6 mm, while the single-ply wall thickness can be selected within a range of 0.12–25 mm.

The Single Ply Stainless Steel Bellows can provide flexible connection, pressure transmission, sealing isolation, and controlled axial deformation. It can reduce the restriction caused by rigid connections when used in moving equipment parts.

Product selection should not be based only on diameter or wall thickness. The purchaser should confirm the working pressure, operating temperature, medium, displacement direction, travel distance, and expected number of operating cycles. A thinner wall does not automatically provide a better solution. The final design must balance response sensitivity, structural stability, and actual operating conditions.

Final dimensions and performance requirements should be based on the approved drawing, technical specifications, and agreed inspection results.

Yixing Blog Pipeline Equipment Co., Ltd. manufactures metal bellows, expansion joints, compensators, and metal hoses. The factory has hydroforming, automatic longitudinal seam welding, argon arc welding, laser cutting, and pressure testing capabilities.

The technical and process teams can review customer drawings, existing samples, or equipment dimensions before production. Important details such as inner diameter, wall thickness, number of convolutions, interface position, end connection, and assembly length are confirmed during the technical communication stage.

Inspection is arranged from raw material cutting through forming, welding, dimensional checking, and finished-product acceptance. Every product is inspected before packaging. Customer-arranged third-party inspection is also supported.

This product is suitable for vacuum valves, pressure sensors, precision instruments, mechanical seals, automatic control devices, and internal flexible equipment connections.

OEM and ODM production is available. Products can be manufactured according to technical drawings or existing prototypes. The minimum order quantity is one piece, making the product suitable for new equipment development, maintenance replacement, and non-standard projects. A sample can be arranged before batch production.

The normal production time for one standard specification is about one month. Projects involving special materials, larger quantities, new tooling, or complex customization normally require two to three months. Photos or videos can be provided during production.

Small packages and wooden cases are available. EXW and FOB delivery terms are supported. If transportation damage occurs, repair or a small replacement shipment may be arranged according to the actual condition. The product includes a six-month industry warranty, with technical guidance available by phone, online communication, or on-site support.
